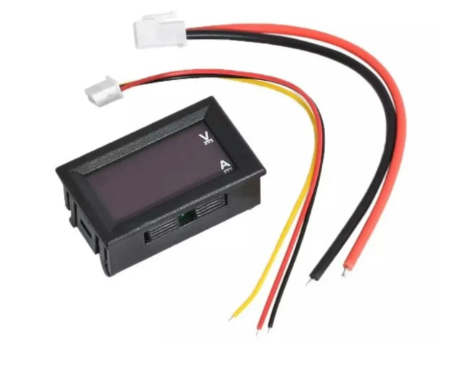

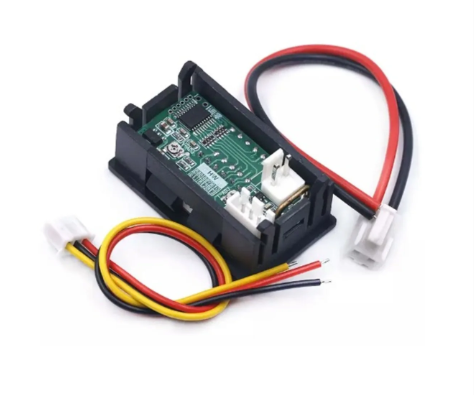

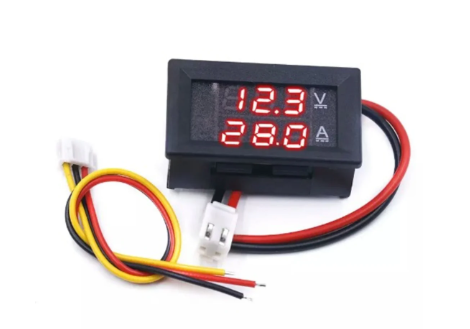

This voltmeter Ammeter allows DC voltage and current to be measured and simultaneously displayed. It is capable of measuring up to 100A and 0 - 100V DC.
Features:
- Display color: Red LED (dual display).
- Display: 0.28″ LED digital.
- Operating voltage: DC 4.5 ~ 30V.
- Measure voltage: DC 0 ~ 100V.
- Minimum resolution (V): 0.1V.
- Refresh rate: ≥500ms / times.
- Measure accuracy: 1% (± 1 digit).
- Minimum resolution (A): 0.01A.
- Operating Current: <20mA.
- Measure current: 100A (direct measurement, built-in shunt).
- Operating temperature: -10 to 65C
- Operating Humidity: 10 to 80% (non-condensing).
- Mounting cutout: 45.5mm x 26.5mm.
